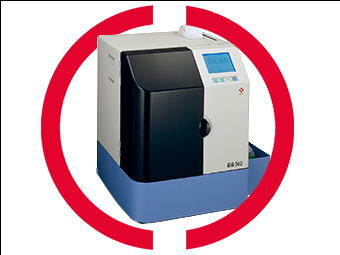

AIA-360
The AUTOMATED ENZYME IMMUNOASSAY SYSTEM AIA-360 is an automated analyzer that measures a variety of substances in serum| plasma| and urine using the AIA-PACK reagent series.
Part #: AIA-360
Brand: Tosoh
Manufacturers:
Description
Specifications
| EU Certification | No |
|---|---|
| Sample containers | Test tubes :13x75, 13x100, 16x75, 16x100 mm (Diameter x Length). Can be used in combination with dedicated sample cups |
| Throughput (test/h) | 36 test/h. |
| CISPR class and group categories | Class A, Group 1 |
| Dust | Average office level |
| FCC | Part 15, Sub Part B, Class A |
| Power Supply/Power Consumption | AC 100 - 240 V, 50/60 Hz. |
| Sample loader | 25 specimens, (add/change as required) |
| Measuring conditions | Reaction temperature: 37 degrees Celsius. Antigen-antibody reaction time: 10 min. |
| Sample volumes (uL) | 10 to 100 μL |
| External Dimensions/Weight (excluding controller PC and monitor) | 400(W) x 400(D) x 500(H) mm / 29 kg 15.7(W) x 15.7(D) x 19.7(H) inches / 64 lb |
| Detection method. | Fluorescent measurement (top-to-top system) |
| External Input/Output | RS-232C |
| In vitro diagnostic reagent | AIA-PACK Series |
| Sample clot detection | Pressure detection |
| Detection Technology | Fluorometric enzyme immunoassay (FEIA) |
| Processing method | Automated continuous random access |
| Pollution degree | 2 |
| Temperature | 15 to 30 degrees Celsius |
| Humidity | 40% to 80% R.H. (with no condensation) |
