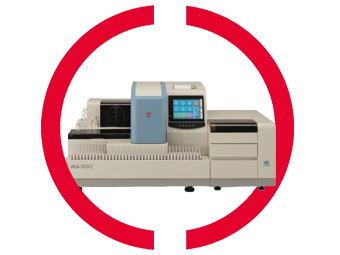

AIA-900
The AUTOMATED ENZYME IMMUNOASSAY ANALYZER AIA-900 is an automated analyzer that measures a variety of substances in serum| plasma| and urine using the AIA-PACK reagent series.
Part #: AIA-900
Brand: Tosoh
Manufacturers:
Description
Specifications
| EU Certification | No |
|---|---|
| Sample containers | Test tubes :13x75, 13x100, 16x75, 16x100 mm (Diameter x Length). Can be used in combination with dedicated sample cups |
| CISPR class and group categories | Class A, Group 1 |
| Specimen barcodes | CODE39, CODE128, ITF, NW-7, JAN compatible (compliant with ASTM14466-92 and CLA guideline compliant barcodes) Min. element width: 0.191mm (0.254mm or over recommended) |
| Measuring conditions | Reaction temperature: 37 degrees Celsius. Antigen-antibody reaction time: 10 min., 20 min, or 40 min. (depending on assay specification) |
| Throughput (test/h) | 90 tests/h. |
| Dust | Average office level |
| FCC | Part 15, Sub Part B, Class A |
| Power Supply/Power Consumption | AC 100 - 240 V, 50/60 Hz. |
| Specimen pretreatment. | Automatic pretreatment (10 min. at 37 degrees Celsius) |
| Sample loader | 100 specimens, (add/change as required) |
| Specimen dilution factors | 2 per assay specification selectable in the 2 to 1000 range. |
| Detection method. | Fluorescent measurement (top-to-top system) |
| External Input/Output | RS-232C |
| In vitro diagnostic reagent | AIA-PACK Series |
| Sample volumes (uL) | 10 to 125 μL |
| Sample clot detection | Pressure detection |
| Detection Technology | Fluorometric enzyme immunoassay (FEIA) |
| Processing method | Automated continuous random access |
| Pollution degree | 2 |
| Precision control | Multirule (Levey-Jenning’s charts) |
| Temperature | 15 to 30 degrees Celsius |
| Humidity | 40% to 80% R.H. (with no condensation) |
