HLC-723GR01

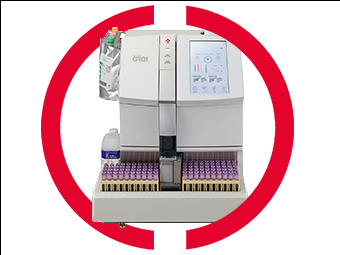

The Tosoh Automated Glycohemoglobin Analyzer HLC-723GR01 is intended for in vitro diagnostic use for the quantitative measurement of % hemoglobin A1c (HbA1c) (DCCT/NGSP) and mmol/mol hemoglobin A1c (IFCC) in venous whole blood specimens.
Part #: 0024750
Brand: Tosoh
Manufacturers:
Description
Specifications
| ANALYTE | Variant Mode: HbA1c (sA1c) |
|---|---|
| Detection Technology | High performance liquid chromatography |
| Assay Principle | Ion exchange high performance liquid chromatography |
| Assay Time (Minutes) | 50 seconds |
| Specimen Volume (uL) | Yellow-Pending 510k clearance |
| Calibrators | Pending 510k clearance |
| Standardization | Pending 510k clearance |
| Assay Sample | Pending 510k clearance |
| Assay Range low | Pending 510k clearance |
| Assay Range high | Pending 510k clearance |
| Unit of Measure | Pending 510k clearance |
| Sample Loading | 10 Tube turntable |
| Sample type | Whole Blood / Pre-Diluted Samples |
| Sample Dimensions | 12-15mm diameter, 75-100mm collection tubes |
| Aspirated Sample Valume | 3μL (Primary tube), 120μL (Diluted samples) |
| Analytical Throughput Variant mode | Variant mode: 2.2 min/sample |
| EU Certification | Yes |
